Botanical Extraction Skid Systems

Modular extraction systems for efficient recovery, purification and concentration of natural products.

Cheminsight designs and supplies skid-mounted extraction systems for R&D, pilot-scale and industrial applications, with integrated process control and automation.

Contact Now Send an Inquiry

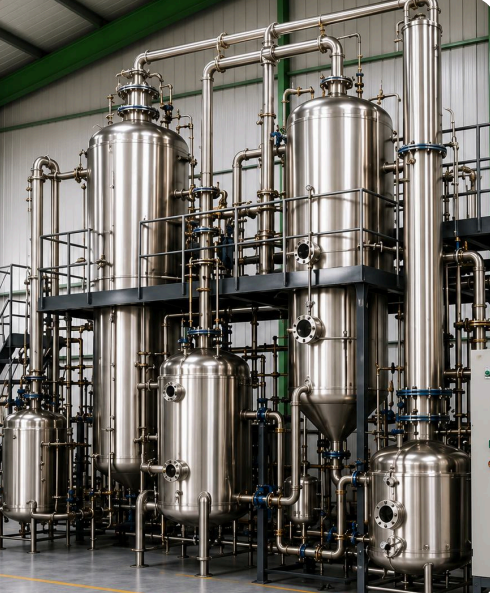

Skid-mounted botanical extraction system built by Cheminsight

Overview

Botanical Extraction Skid Systems

Cheminsight’s Botanical Extraction Skid Systems are modular process units designed for the extraction, concentration, purification and recovery of natural compounds from plant-based raw materials. The systems can be configured for batch or semi-continuous operation and are engineered around specific process requirements, with focus on product quality, process efficiency and controlled solvent handling.

What we deliver

Extraction Process Design & Engineering
Skid Fabrication & Integrated Piping
Filtration, Concentration & Recovery Systems
Installation, Commissioning & Performance Support

Contact Now Request a Proposal

Capabilities

What’s included

Batch & Semi-Continuous Operation
Solvent-Based / Water-Based Extraction
Atmospheric & Vacuum Operation
Temperature Control up to 150 °C
Integrated Filtration & Product Recovery
Closed-Loop Solvent Handling
PLC-Based Control with HMI / SCADA
Custom Engineered Skid-Mounted Systems

Technical data

System capabilities

Parameter	Specification
Type	Skid-mounted extraction system
Operation	Batch / Semi-continuous
Operating pressure	Atmospheric / Vacuum
Temperature range	Ambient to 150 °C
Extraction method	Solvent-based / Water-based
Automation	PLC-based control with HMI / SCADA
Construction	SS304 / SS316 / SS316L

Key features

Designed for process efficiency

Modular Plug-and-Play Design
Closed-Loop Solvent Handling
Integrated Filtration & Recovery
Vacuum & Temperature Control
Energy-Efficient Operation
PLC / SCADA Automation
GMP-Friendly Design
Custom Engineered to Process Requirements

Applications

Typical applications

Botanical Extracts
Herbal Extracts
Essential Oils
Natural Flavours & Fragrances
Plant-Based Active Ingredients
Specialty Natural Products
R&D & Pilot Plant Applications
